PADDY SEPARATOR
Download Brochure
M.G PADDY SEPRATOR STAINLESS STEEL (OUTER OR M.S.)(OUTER)

M.G PADDY SEPRATOR STAINLESS STEEL (OUTER OR M.S.)(OUTER)
This machine is used to effect the separation of brown rice from a mix of brown rice and paddy. The separation is accomplished by passing the grain mix through a series of z shaped baffle compartments mounted on an inclined oscillating table utilizing the difference in the specific gravity & surface texture of the grains.

Advantages

* Unique design of inlet feed box ensures uniform feed to all compartments.
* The stainless steel z shaped baffle compartments.
* Uniform compartment size.
* Manual adjustable stroke mechanism.
* Special design with 3 point stroke adjustment.
* All product contact parts are made out of stainless steel.
* New geometry of Zig-Zigs.
* Simple to operate and low maintenance.

DESCRIPTION
CAPACITY
POWER
MGI-42/3
2 - 2.5 ton
2 H.P
MGI-45/3
2 - 3.0 ton
2 H.P
MGI-54/3
2 - 3.5 ton
2 H.P
MGI-60/3
3.5 - 4 ton
3 H.P
MGI-72/3
4 - 4.5 ton
3 H.P
MGI-80/3
4.5 - 5 ton
3 H.P

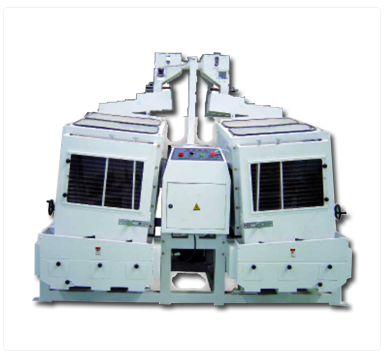

M.G PADDY SEPRATOR BUTTERFLY TYPE

M.G PADDY SEPRATOR BUTTERFLY TYPE

M.G Paddy Separator is an Oscillation Type paddy Separator with very high sorting performance and an easy maintaince Design. All varieties of rice such as long grain, medium grain and short grain can be sorted easily and accurately. It separates a mixture of paddy and brown rice into three distinct classes: paddy (sent back to husker), mixture of paddy (Sent back to separator) and brown rice (Send to whitener)

DESCRIPTION
CAPACITY
POWER
MODEL-40X20X2
3 to 5 ton
2 H.P
MODEL-60X20X2
5 to 8 ton
3 H.P

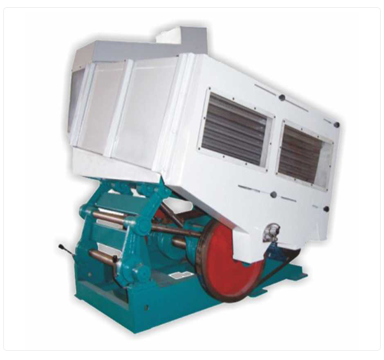

M.G PADDY SEPRATOR TRAY TYPE

M.G PADDY SEPRATOR TRAY TYPE
This Machine works on principle of gravity and will separate the mixture in to three parts as above, Simple design, low Maintenance, Price effective.

DESCRIPTION
CAPACITY
POWER
MGI-10
1.5 to 2 ton
2 H.P
MGI-12
3 to 4 ton
3 H.P
